Premium Lead Concentrate
Engineered for seamless international export. Sourcing high-grade galena and cerussite concentrates from our Andean operations to supply the world’s most demanding smelting and refining facilities.
Powering Refined Metal & Energy Storage.
SINCHI WAYRA SA manages the complete extraction and beneficiation life cycle of premium lead concentrates. Obtained primarily from rich galena (PbS) deposits, our concentrate serves as the critical feedstock for refined lead metal, advanced battery technologies, and industrial radiation shielding.
Our Super High-Grade (60–70%) and Ultra Premium (70–75%) sulfide concentrates are highly sought after in Asian and European markets, specifically tailored for rapid customs clearance, maximized payable silver values, and minimized smelter penalties.
Comprehensive Export Specifications
1. Lead Concentrate Categories by Content
| Grade Type | Lead (Pb) % | Commercial Classification |
|---|---|---|
| Low Grade | 20–35% | Industrial / Oxide blend |
| Medium Grade | 35–50% | Standard export grade |
| High Grade | 50–60% | Premium smelter grade |
| Super High Grade | 60–70% | China Preferred Grade |
| Ultra Premium | 70–75% | Rare high-grade galena concentrate |
2. Super High-Grade Spec (60–70% Pb)
China Customs Preferred Commercial Specification.
| Component | Guaranteed Spec |
|---|---|
| Lead (Pb) | 60–70% |
| Silver (Ag) | 200–1500 g/MT |
| Zinc (Zn) / Iron (Fe) | ≤3% / ≤8% |
| Sulfur (S) / Silica (SiO2) | 20–30% / ≤3% |
| Bismuth (Bi) / Copper (Cu) | ≤0.05% / ≤0.3% |
| Arsenic (As) / Antimony (Sb) | ≤0.05% / ≤0.10% |
| Mercury (Hg) | ≤0.01% |
| Moisture / Particle Size | ≤8% / 0–10 mm |
3. Critical Penalty Elements
Strictly monitored limits to prevent severe smelter deductions.
| Element | Preferred Limit | Penalty Risk |
|---|---|---|
| Mercury (Hg) | ≤0.01% | Severe (Rejection risk) |
| Arsenic (As) | ≤0.05% | High Penalty |
| Bismuth (Bi) | ≤0.05% | High Penalty |
| Antimony (Sb) | ≤0.10% | High Penalty |
| Fluorine (F) | ≤0.05% | High Penalty |
| Cadmium (Cd) / Chlorine (Cl) | ≤0.20% / ≤0.03% | Moderate |
| Moisture | ≤8% | Freight Deduction & TML Risk |
Maritime Export & Packaging Standards
A. FIBC Jumbo Bags & Bulk
Optimized for moisture control and rapid port loading.
- Jumbo Bags: 1–2 MT woven polypropylene with PE liner and 4 lifting loops.
- Loose Bulk: Direct loading for large-volume carrier vessels.
- Containerized: 20FT holding 20–27 MT. Requires plastic lining, moisture barrier, and dunnage.
- Steel Drums: 200–250kg for specialty/high-value assay material.
B. Maritime Compliance
Mandatory certification for global maritime transit.
- IMSBC Code Compliance: Strict adherence to bulk cargo codes.
- TML Certificate: Transportable Moisture Limit verification.
- Moisture & Radiation: Mandatory certificates ensuring safe handler environments and no liquefaction risk.
C. Pre-Shipment Inspection
Executed by BQCIS, SGS, BV, CCIC, or Intertek.
- Assay Verification: Chemical composition, Moisture, and TML testing.
- Physical Checks: Weight verification, sampling, and radiation screening.
- Supervision: Container loading and final seal verification.
Export Documentation Requirements
Commercial Invoice • Packing List • Bill of Lading • Certificate of Origin • Certificate of Analysis (COA) • Moisture Certificate • TML Certificate • Weight Certificate • Inspection Certificate • Radiation Free Certificate • Fumigation Certificate.
Production & Chemical Processing

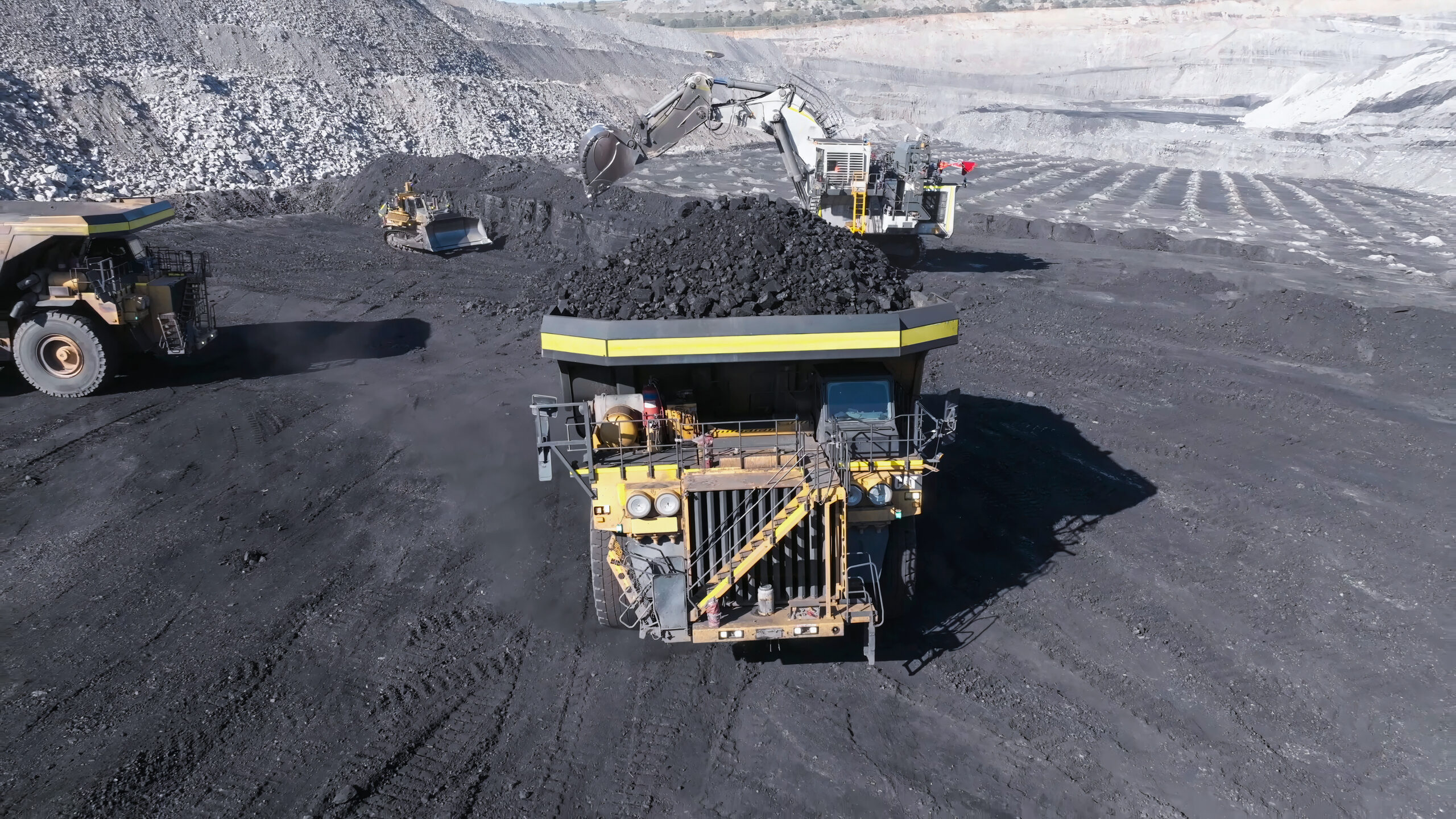

1. Mining & Beneficiation
Raw ore undergoes multi-stage crushing to <20mm, followed by ball/SAG milling to 75–200 microns. Our flotation beneficiation circuits utilize precision xanthate collectors, sodium cyanide (to depress zinc), and advanced frothers to isolate high-purity galena. Dewatering filters drop moisture to a strict ≤8% standard.
2. Downstream Smelting Reactions
Our concentrates are optimally engineered for standard two-stage pyrometallurgical processing:
- Roasting: 2PbS + 3O2 → 2PbO + 2SO2
- Reduction Smelting: PbO + C → Pb + CO
- Refining: Removing targeted Ag, Cu, Zn, As, and Sb impurities.
Fueling the Global Smelting Grid.
From the depths of our mining assets to the primary smelters of China, South Korea, and India, SINCHI WAYRA SA’s lead concentrates provide a reliable, high-purity baseload for global industry and infrastructure.
